Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Correa
  • Model Number: CSYA3120CH
  • Type: Analog Camera
  • Style: Mini Camera
  • Sensor: CCD
  • Technology: Pinhole Lens Optional
  • Special Features: Metal Cased
  • Image Device: 1/3" 960H SONY EXview HAD CCD ll
  • Horizontal Resolution: 700TVL
  • Minimum Illumination: 0.1Lux

Packaging & Delivery

Packaging Details: 1xcamera,1xbracket,1xcable
Delivery Detail: Shipped in 1 days after payment

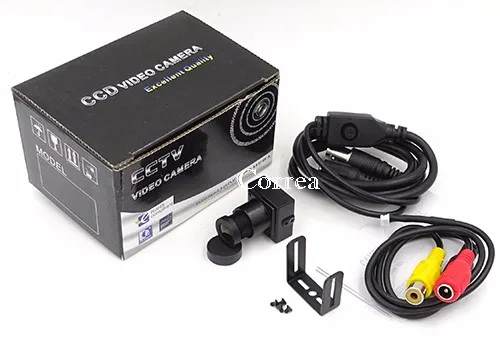

20x20mm Super Tiny 700TVL SONY CCD Mini Camera



This is CCD sensor camera with 20x20mm size and 700TVL high resolution. Still with on screen display function, great pictures performance for CCTV system and aerial photography.


Fetures:

* 1/3" Color Sony Super HAD (Hi-Res.) NEXTCHIP-2090 CCD

* Ultra-High Resolution of 700 TVL

* Min. Illustration of 0.1 Lux

* 2DNR, ATR (Adaptive Tone-curve Reproduction / Digital WDR)

* BLC / Privacy Masking / Motion Detection

* Multi-Language OSD Menu

* Extream Clear Cutting Edge Picture

* Compact Size: 20 x 20 (mm)

Specifications:

Model No

CSYA3120CH

Image Device

1/3" Color Sony Super HAD (Hi-Res.) NEXTCHIP-2090 CCD

Scanning System

2:1 Interlace

Scanning Frequency

PAL : 15.625 KHz(H), 50 Hz(V) / NTSC : 15.734 KHz(H), 59.94 Hz(V)

H. Resolution

700TVL

Effective Pixels

PAL:976 (H) X 582 (V) / NTSC: 976 (H) X 494 (V)

S/N Ratio

More than 52dB (AGC Off)

 Min. Illumination

0.1 Lux  / F2.0

Power Comsumption

DC5-15V , 60mA

Sync. System

Internal

Video  Output

1.0  Vp-p Composite (75 ohm)

 Lens

Fixed Board Lens / Pinhole Lens / Vari-Focal Lens

Dimensions  (mm)

20x20mm

                                          OSD  functions

Electronic Shutter

Auto,FLK,  1/250 ~ 1/100,000 sec

AGC

Low , Middle , High

White  Balance

Anti CRL, Manual, ATW1, ATW2

Day&Night

Color , Auto, B/W

Motion Detection

Off,On (4 area)

Privacy

Off,On (8 area)

HLC

All day / Night only

DNR

2D  DNR, Level Adjustable

Language

English,French, Russian, German,

Spanish, Dutch,Chinese, Japanese, Portuguese
